Details

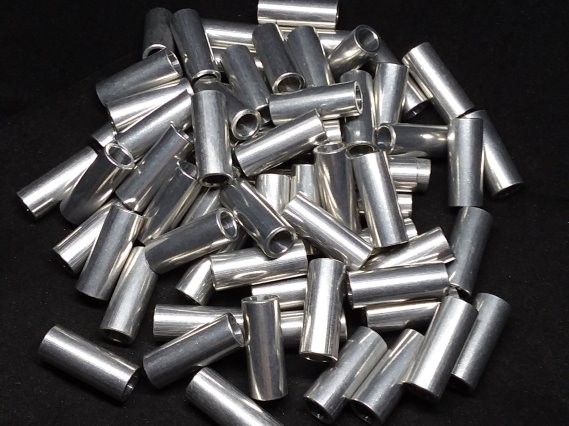

Aluminum Spacer #AS38-14-62
For 1/4 or Screws
OD = 0.375" (3/8") 9.53mm (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.257" 6.53mm (Standard tolerance: +/-.003", +/-.075mm)
L = .969 (31/32) 24.61mm (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.05" 1.49mm
Weight = 5.48 lbs/M 2.49 kg/K
- ROHS Compliant
- Made in the U.S.A.
- We are the manufacturer and seller
- Finish - Tumbled Finish
- Spacers are tumble finished to provide a nice appearance
- Hole is chamfered on both ends -
- To remove burrs
- To make it easier to guide spacer onto bolt/screw/shaft/etc.
- Outer Diameter corners are chamfered lightly -
- Tumble finish makes the OD chamfer into a radius
- Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:
- Corrosion resistance
- Welding
Additional Information
| SKU | AS38-14-62 |
|---|---|
| Metal Alloy | Aluminum 6061-T6 |
| Bolt Hole Size / Inner DIameter | For 1/4" or 6mm Bolts |
| Outer Diameter | 3/8 in.----------9.53mm |
| Length Decimal/Fraction/Metric | 0.969 in.---31/32---24.61mm |
| Bolt Hole Size | 0.257 |
| Outer Diameter | 0.375 |
| Length | 0.969 |
| Inner Metric | 6.53 |
| Outer Metric | 9.53 |
| Length Metric | 24.61 |
| Price | $0.92 |
