Aluminum Spacer 1/2 OD x .319 ID x 1 5/32

Availability: In stock

Only 903 left

$2.50
  • Buy 25 for $1.78 each and save 29%
  • Buy 50 for $1.37 each and save 46%
  • Buy 100 for $1.05 each and save 58%
  • Buy 250 for $0.81 each and save 68%
  • Buy 500 for $0.62 each and save 76%
  • Buy 1000 for $0.48 each and save 81%
  • Buy 2500 for $0.368 each and save 86%
  • Buy 5000 for $0.284 each and save 89%
OR

Quick Overview

Aluminum Spacer 1/2 OD x .319 ID x 1-5/32 Long

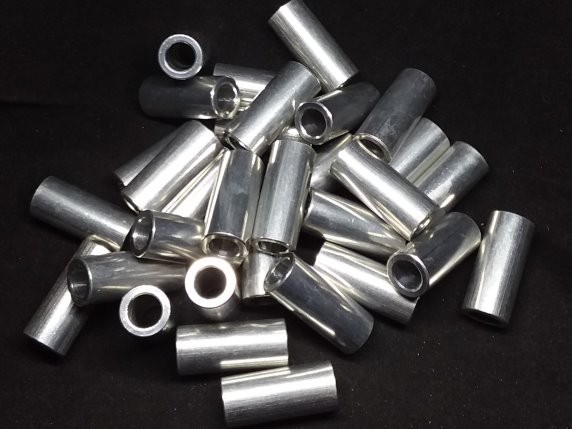

Aluminum Spacer 1/2 OD x 5/16 or 8mm ID x 1 5/32

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 1/2 OD x 5/16 or 8mm ID x 1 5/32

Details

Aluminum Spacer #AS50-16-74
For 0.3125 or 8mm Screws

OD = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.319" 8.1mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 1.25" (1-5/32") 29.36mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.09" 2.29mm
Weight = 14.26 lbs/M 6.48 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Tumbled Finish
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding

Additional Information

SKU AS50-16-74
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 5/16" or 8mm Bolts
Outer Diameter 1/2 in.---------12.7mm
Length Decimal/Fraction/Metric 1.156 in.--1-5/32---29.36mm
Bolt Hole Size 0.319
Outer Diameter 0.5
Length 1.156
Inner Metric 8.1
Outer Metric 12.7
Length Metric 29.36
Price $2.50
