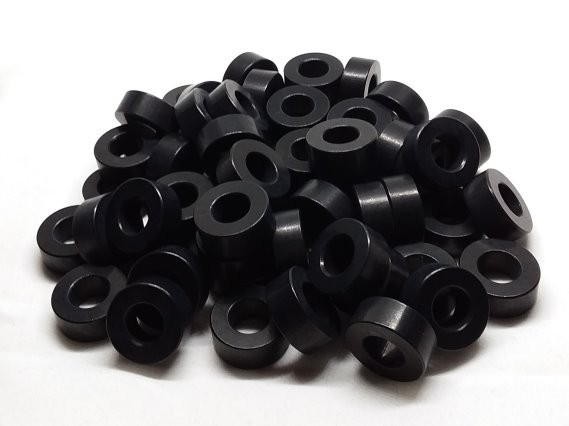

Aluminum Spacer 3/4 OD x .382 ID x 5/16 Long - Black Anodized

Availability: In stock

Only 726 left

$4.19
  • Buy 25 for $2.99 each and save 29%
  • Buy 50 for $2.06 each and save 51%
  • Buy 100 for $1.50 each and save 65%
  • Buy 250 for $1.06 each and save 75%
  • Buy 500 for $0.75 each and save 83%
  • Buy 1000 for $0.60 each and save 86%
OR

Quick Overview

Aluminum Spacer 3/4 OD x .380 ID x 5/16 Long - Black Anodized

Aluminum Spacer 3/4 OD x #18 Hole x 5/16 Long - Black Anodized

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 3/4 OD x #18 Hole x 5/16 Long - Black Anodized

Details

Aluminum Spacer #AS75-18-20-BA
For 3/8 or 9mm Screws

OD = 0.75" (3/4") 19.05mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.382" 9.7mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.313" (5/16") 7.938mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.18" 4.69mm
Weight = 10.06 lbs/M 4.57 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Black Anodized
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding

Additional Information

SKU AS75-18-20-BA
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 3/8" Bolts
Outer Diameter 3/4 in.---------19.05mm
Length Decimal/Fraction/Metric 0.3125 in.---5/16---7.94mm
Bolt Hole Size 0.382
Outer Diameter 0.75
Length 0.313
Inner Metric 9.7
Outer Metric 19.05
Length Metric 7.94
Price $4.19
