Aluminum Spacer 3/4 OD x .382 ID x 1-1/2 Long - Black Anodized

Availability: Out of stock

$7.61
  • Buy 25 for $5.43 each and save 29%
  • Buy 50 for $3.58 each and save 53%
  • Buy 100 for $2.59 each and save 66%
  • Buy 250 for $1.88 each and save 76%
  • Buy 500 for $1.38 each and save 82%
  • Buy 1000 for $1.08 each and save 86%
  • Buy 2500 for $0.90 each and save 89%

Quick Overview

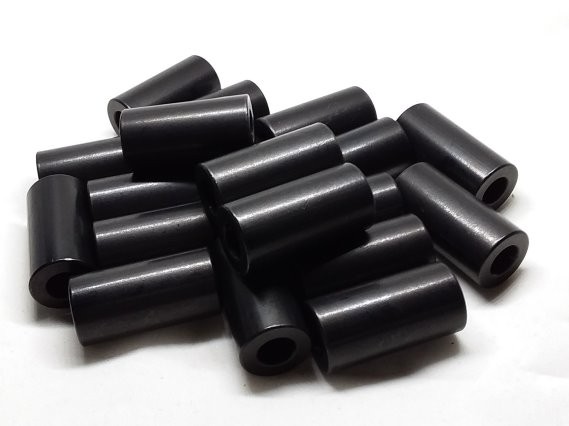

Aluminum Spacer 3/4 OD x .380 ID x 1-1/2 Long - Black Anodized

Aluminum Spacer 3/4 OD x #18 Hole x 1-1/2 Long - Black Anodized

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 3/4 OD x #18 Hole x 1-1/2 Long - Black Anodized

Details

Aluminum Spacer #AS75-18-96-BA
For 3/8 or 9mm Screws

OD = 0.75" (3/4") 19.05mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.382" 9.7mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 1.5" (1-1/2") 38.1mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.18" 4.69mm
Weight = 48.27 lbs/M 21.92 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Black Anodized
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding

Additional Information

SKU AS75-18-96-BA
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 3/8" Bolts
Outer Diameter 3/4 in.---------19.05mm
Length Decimal/Fraction/Metric 1.500 in.---1-1/2---38.1mm
Bolt Hole Size 0.382
Outer Diameter 0.75
Length 1.5
Inner Metric 9.7
Outer Metric 19.05
Length Metric 38.1
Price $7.61
