Details

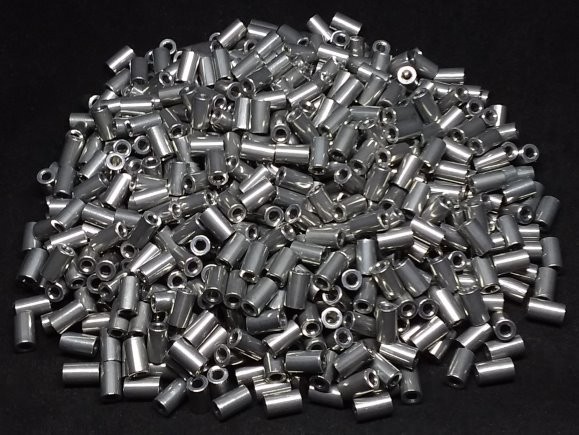

Aluminum Spacer #AS19-2-20
For #2 Screws
OD = 0.187" (3/16") 4.8mm (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.0905" 2.3mm (Standard tolerance: +/-.0025", +/-.064mm)
L = 0.313"(5/16) 7.95mm (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.048" 1.23mm
Weight = 0.26 lbs/M 0.118 kg/K
- ROHS Compliant
- Made in the U.S.A.
- We are the manufacturer and seller
- Finish - Plain Aluminum
- Spacers are tumble finished to provide a nice appearance
- Hole is chamfered on both ends -
- To remove burrs
- To make it easier to guide spacer onto bolt/screw/shaft/etc.
- Outer Diameter corners are chamfered lightly -
- Tumble finish makes the OD chamfer into a radius
- Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:
- Corrosion resistance
- Welding
- Anodizing or Iriditing
- Please see coatings to add anodizing or iriditing to your order
- 12 colors available
Additional Information
SKU | AS19-2-20 |
---|---|
Metal Alloy | Aluminum 6061-T6 |
Bolt Hole Size / Inner DIameter | For #2 or 2mm Screws |
Outer Diameter | 3/16 in.--------4.76mm |
Length Decimal/Fraction/Metric | 0.3125 in.---5/16---7.94mm |
Bolt Hole Size | 0.0905 |
Outer Diameter | 0.187 |
Length | 0.313 |
Inner Metric | 2.3 |
Outer Metric | 4.8 |
Length Metric | 7.95 |
Price | $0.69 |
