Aluminum Spacer 1/2 OD x .192 ID x 1/8 Long

Availability: In stock

$1.039
  • Buy 25 for $0.99 each and save 5%
  • Buy 50 for $0.62 each and save 41%
  • Buy 100 for $0.44 each and save 58%
  • Buy 250 for $0.33 each and save 69%
  • Buy 500 for $0.25 each and save 76%
  • Buy 1000 for $0.19 each and save 82%
  • Buy 2500 for $0.17 each and save 84%
  • Buy 5000 for $0.14 each and save 87%
OR

Quick Overview

Aluminum Spacer 1/2 OD x .192 ID x 1/8 Long

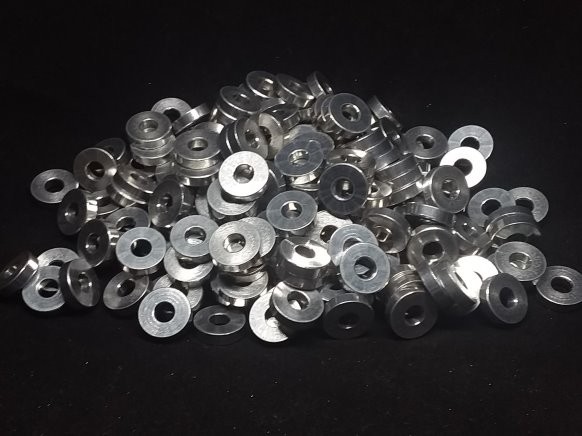

Aluminum Spacer 1/2 OD x #10 Hole x 1/8 Long

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 1/2 OD x #10 Hole x 1/8 Long

Details

Aluminum Spacer #AS50-10-8
For #10 Screws

OD = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.192" 4.92mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.125" (1/8") 3.175mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.15" 3.91mm
Weight = 2.05 lbs/M 0.93 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Plain Aluminum
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS50-10-8
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For #10 Screws
Outer Diameter 1/2 in.---------12.7mm
Length Decimal/Fraction/Metric 0.125 in.-----1/8----3.18mm
Bolt Hole Size 0.192
Outer Diameter 0.5
Length 0.125
Inner Metric 4.92
Outer Metric 12.7
Length Metric 3.18
Price $1.039
