Aluminum Spacer 7/16 OD x .319 ID x 1/2 Long-Black Anodized

Availability: In stock

Only 1268 left

$3.24
  • Buy 25 for $2.31 each and save 29%
  • Buy 50 for $1.63 each and save 50%
  • Buy 100 for $1.20 each and save 63%
  • Buy 250 for $0.84 each and save 75%
  • Buy 500 for $0.58 each and save 83%
  • Buy 1000 for $0.47 each and save 86%
  • Buy 2500 for $0.385 each and save 89%
  • Buy 5000 for $0.346 each and save 90%
OR

Quick Overview

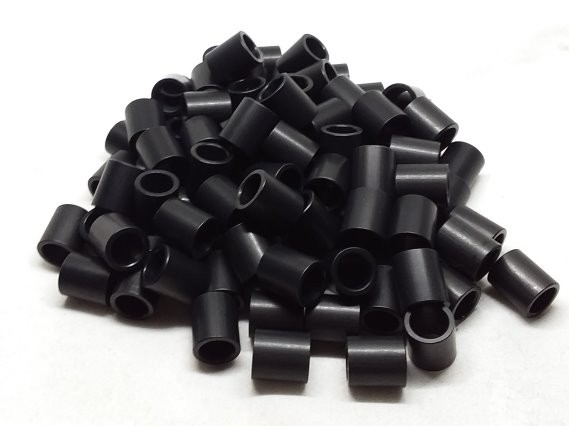

Aluminum Spacer 7/16 OD x .319 ID x 1/2 Long-Black Anodized

Aluminum Spacer 7/16 OD x 5/16 or 8mm x 1/2 Long-Black Anodized

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 7/16 OD x 5/16 or 8mm x 1/2 Long-Black Anodized

Details

Aluminum Spacer #AS44-16-32
For 0.3125 or 8mm Screws

OD = 0.4375" (7/16") 11.11mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.319" 8.1mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.059" 1.51mm
Weight = 5.7 lbs/M 2.59 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Black Anodized
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS44-16-32-BA
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 5/16" or 8mm Bolts
Outer Diameter 7/16 In.--------11.1mm
Length Decimal/Fraction/Metric 0.500 in.-----1/2----12.7mm
Bolt Hole Size 0.319
Outer Diameter 0.4375
Length 0.5
Inner Metric 8.1
Outer Metric 12.7
Length Metric 12.7
Price $3.24
