Aluminum Spacer 5/8 OD x .319 ID x 1/2 Long

Availability: In stock

$1.54
  • Buy 25 for $0.96 each and save 38%
  • Buy 50 for $0.69 each and save 56%
  • Buy 100 for $0.51 each and save 67%
  • Buy 250 for $0.40 each and save 75%
  • Buy 500 for $0.30 each and save 81%
  • Buy 1000 for $0.26 each and save 84%
  • Buy 2500 for $0.24 each and save 85%
  • Buy 5000 for $0.21 each and save 87%
OR

Quick Overview

Aluminum Spacer 5/8 OD x .319 ID x 1/2 Long

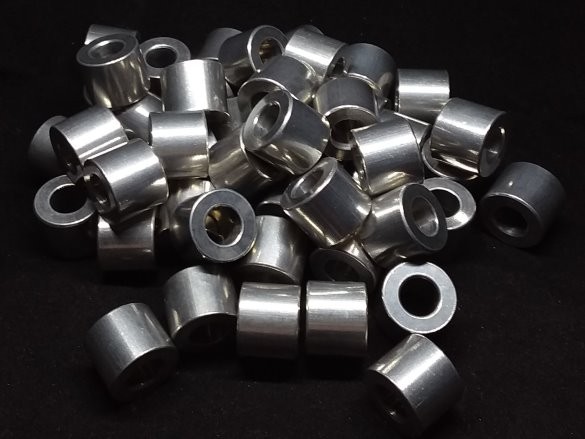

Aluminum Spacer 5/8 OD x 5/16 or 8mm ID x 1/2 Long

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Aluminum Spacer 5/8 OD x 5/16 or 8mm ID x 1/2 Long

Details

Aluminum Spacer #AS62-16-32
For 0.3125 or 8mm Screws

OD = 0.625" (5/8") 15.88mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.319" 8.1mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.15" 3.88mm
Weight = 11.12 lbs/M 5.05 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Plain Aluminum
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS62-16-32
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 5/16" or 8mm Bolts
Outer Diameter 5/8 in.---------15.9mm
Length Decimal/Fraction/Metric 0.500 in.-----1/2----12.7mm
Bolt Hole Size 0.319
Outer Diameter 0.625
Length 0.5
Inner Metric 8.1
Outer Metric 15.88
Length Metric 12.7
Price $1.54
