Details

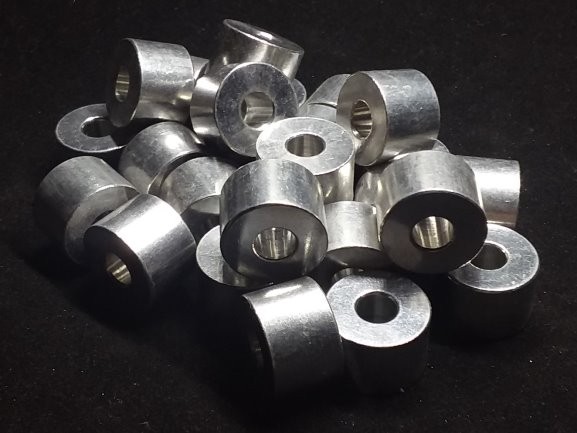

Aluminum Spacer #AS75-15-32
For 9/32 or 7mm Screws
OD = 0.75" (3/4") 19.05mm (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.281" 7.14mm (Standard tolerance: +/-.003", +/-.075mm)
L = 0.500" (1/2") 12.7mm (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.235" 5.96mm
Weight = 18.6 lbs/M 8.42 kg/K
- ROHS Compliant
- Made in the U.S.A.
- We are the manufacturer and seller
- Finish - Plain Aluminum
- Spacers are tumble finished to provide a nice appearance
- Hole is chamfered on both ends -
- To remove burrs
- To make it easier to guide spacer onto bolt/screw/shaft/etc.
- Outer Diameter corners are chamfered lightly -
- Tumble finish makes the OD chamfer into a radius
- Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:
- Corrosion resistance
- Welding
- Anodizing or Iriditing
- Please see coatings to add anodizing or iriditing to your order
- 12 colors available
Additional Information
SKU | AS75-15-32 |
---|---|
Metal Alloy | Aluminum 6061-T6 |
Bolt Hole Size / Inner DIameter | 9/32 in. (7.14mm) |
Outer Diameter | 3/4 in.---------19.05mm |
Length Decimal/Fraction/Metric | 0.500 in.-----1/2----12.7mm |
Bolt Hole Size | 0.281 |
Outer Diameter | 0.75 |
Length | 0.500 |
Inner Metric | 7.14 |
Outer Metric | 19.05 |
Length Metric | 12.7 |
Price | $3.01 |
