Aluminum Spacer 3/4 OD x .172 ID x 3/8 Long

Availability: In stock

$4.22
  • Buy 25 for $3.01 each and save 29%
  • Buy 50 for $1.88 each and save 56%
  • Buy 100 for $1.34 each and save 69%
  • Buy 250 for $1.00 each and save 77%
  • Buy 500 for $0.77 each and save 82%
  • Buy 1000 for $0.60 each and save 86%
  • Buy 2500 for $0.46 each and save 90%
  • Buy 5000 for $0.35 each and save 92%
OR

Quick Overview

Aluminum Spacer 3/4 OD x .172 ID x 17/32 Long

Aluminum Spacer 3/4 OD x #8 Hole x 3/8 Long

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

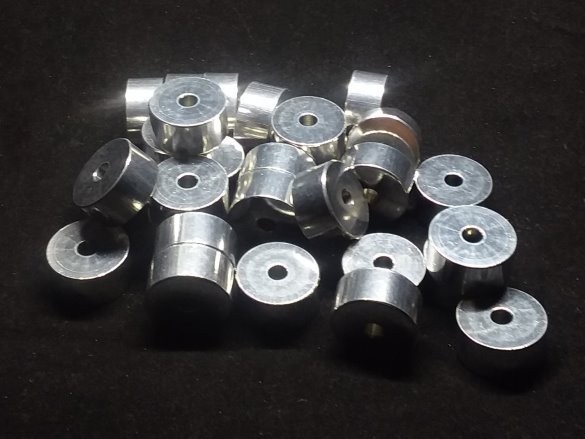

  • Aluminum Spacer 3/4 OD x #8 Hole x 3/8 Long

Details

Aluminum Spacer #AS75-8-24
For 8 or 4mm Screws

OD = 0.75" (3/4") 19.05mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.172" 4.37mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.375" (3/8")9.53mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.289" 7.34mm
Weight = 15.5 lbs/M 7.05 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Tumbled finish
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding

Additional Information

SKU AS75-8-24
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For #8 or 4mm Screws
Outer Diameter 3/4 in.---------19.05mm
Length Decimal/Fraction/Metric 0.375 in.-----3/8----9.53mm
Bolt Hole Size 0.172
Outer Diameter 0.75
Length 0.375
Inner Metric 4.37
Outer Metric 19.05
Length Metric 9.53
Price $4.22
