Aluminum Spacer 1/2 OD x .257 ID x 1/4 Long - Black Anodized

Availability: In stock

Only 986 left

$2.15
  • Buy 25 for $1.53 each and save 29%
  • Buy 50 for $1.13 each and save 48%
  • Buy 100 for $0.78 each and save 64%
  • Buy 250 for $0.54 each and save 75%
  • Buy 500 for $0.44 each and save 80%
  • Buy 1000 for $0.36 each and save 84%
  • Buy 2500 for $0.323 each and save 85%
  • Buy 5000 for $0.302 each and save 86%
  • Buy 10000 for $0.29 each and save 87%
  • Buy 25000 for $0.283 each and save 87%
OR

Quick Overview

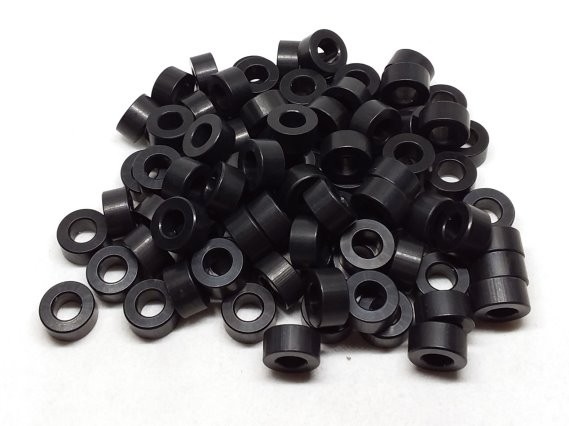

Aluminum Spacer 1/2 OD x .257 ID x 1/4 Long - Black Anodized

Aluminum Spacer 1/2 OD x .257 ID x 1/4 Long - Black Anodized

Details

Aluminum Spacer #AS50-14-16-BA
For 1/4 or 6mm Screws

OD = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.257" 6.53mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.25" (1/4") 6.35mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.12" 3.08mm
Weight = 3.54 lbs/M 1.61 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Black Anodized
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding

Additional Information

SKU AS50-14-16-BA
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 1/4" or 6mm Bolts
Outer Diameter 1/2 in.---------12.7mm
Length Decimal/Fraction/Metric 0.250 in.-----1/4----6.35mm
Bolt Hole Size 0.257
Outer Diameter 0.5
Length 0.25
Inner Metric 6.53
Outer Metric 12.7
Length Metric 6.35
Price $2.15
