Aluminum Spacer 3/8 OD x .219 ID x 11/64 Long

Availability: In stock

$0.77
  • Buy 25 for $0.48 each and save 38%
  • Buy 50 for $0.34 each and save 56%
  • Buy 100 for $0.26 each and save 67%
  • Buy 250 for $0.20 each and save 75%
  • Buy 500 for $0.15 each and save 81%
  • Buy 1000 for $0.125 each and save 84%
  • Buy 2500 for $0.094 each and save 88%
  • Buy 5000 for $0.07 each and save 91%
  • Buy 10000 for $0.063 each and save 92%
  • Buy 25000 for $0.059 each and save 93%
OR

Quick Overview

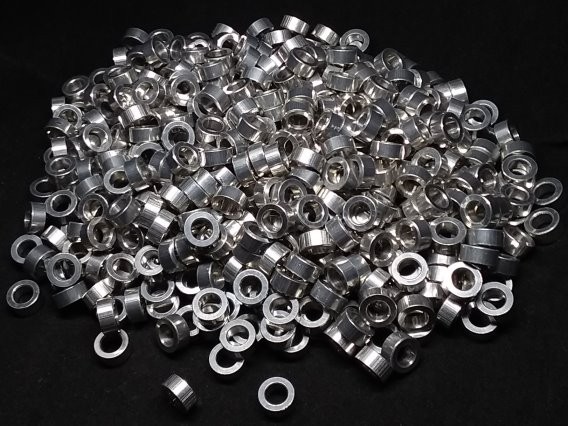

Aluminum Spacer 3/8 OD x .219 ID x 11/64 Long

Aluminum Spacer 3/8 OD x .219 ID x 11/64 Long

Details

Aluminum Spacer #AS38-12-11
For #12 or 5mm Screws

OD = 0.375" (3/8") 9.53mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.219" 5.56mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.172" (11/64") 4.369mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.07" 1.98mm
Weight = 1.23 lbs/M 0.56 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Plain Aluminum
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS38-12-11
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For #12 or 5mm Screws
Outer Diameter 3/8 in.----------9.53mm
Length Decimal/Fraction/Metric 0.172 in.---11/64---4.37mm
Bolt Hole Size 0.219
Outer Diameter 0.375
Length 0.172
Inner Metric 5.56
Outer Metric 9.53
Length Metric 4.37
Price $0.77
