Aluminum Spacer 1/2 OD x .257 ID x 1/8 Long

Availability: In stock

$0.76
  • Buy 25 for $0.47 each and save 39%
  • Buy 50 for $0.34 each and save 56%
  • Buy 100 for $0.25 each and save 68%
  • Buy 250 for $0.19 each and save 75%
  • Buy 500 for $0.15 each and save 81%
  • Buy 1000 for $0.124 each and save 84%
  • Buy 2500 for $0.11 each and save 86%
  • Buy 5000 for $0.10 each and save 87%
  • Buy 10000 for $0.089 each and save 89%
  • Buy 25000 for $0.083 each and save 90%
  • OR

    Quick Overview

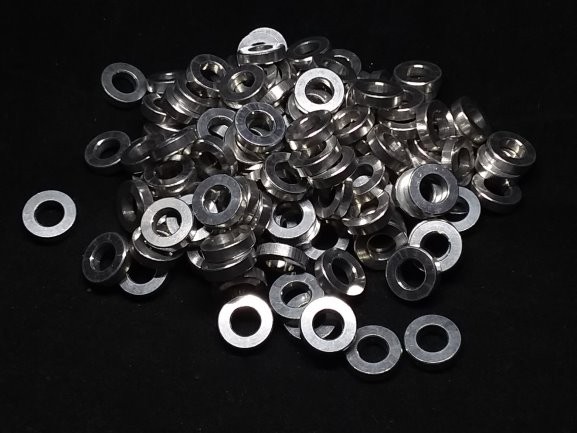

    Aluminum Spacer 1/2 OD x .257 ID x 1/8 Long

    Aluminum Spacer 1/2 OD x .257 ID x 1/8 Long

    Details

    Aluminum Spacer #AS50-14-8
    For 1/4 or 6mm Screws

    OD = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
    ID = 0.257" 6.53mm   (Standard tolerance: +/-.003", +/-.075mm)
    L = 0.125" (1/8") 3.175mm   (Standard tolerance: +/-.005", +/-.125mm)
    Wall Thickness = 0.12" 3.08mm
    Weight = 1.77 lbs/M 0.8 kg/K

    • ROHS Compliant
    • Made in the U.S.A.
      • We are the manufacturer and seller
    • Finish - Plain Aluminum
      • Spacers are tumble finished to provide a nice appearance
    • Hole is chamfered on both ends -
      • To remove burrs
      • To make it easier to guide spacer onto bolt/screw/shaft/etc.
    • Outer Diameter corners are chamfered lightly -
      • Tumble finish makes the OD chamfer into a radius
    • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
      • Corrosion resistance
      • Welding
      • Anodizing or Iriditing
        • Please see coatings to add anodizing or iriditing to your order
        • 12 colors available

    Additional Information

    SKU AS50-14-8
    Metal Alloy Aluminum 6061-T6
    Bolt Hole Size / Inner DIameter For 1/4" or 6mm Bolts
    Outer Diameter 1/2 in.---------12.7mm
    Length Decimal/Fraction/Metric 0.125 in.-----1/8----3.18mm
    Bolt Hole Size 0.257
    Outer Diameter 0.5
    Length 0.125
    Inner Metric 6.53
    Outer Metric 12.7
    Length Metric 3.18
    Price $0.76
