Aluminum Spacer 1/4 OD x .115 ID x 1/8 Long

Availability: In stock

$0.39
  • Buy 25 for $0.25 each and save 36%
  • Buy 50 for $0.17 each and save 57%
  • Buy 100 for $0.13 each and save 67%
  • Buy 250 for $0.10 each and save 75%
  • Buy 500 for $0.08 each and save 80%
  • Buy 1000 for $0.064 each and save 84%
  • Buy 2500 for $0.057 each and save 86%
  • Buy 5000 for $0.051 each and save 87%
  • Buy 10000 for $0.046 each and save 89%
  • Buy 25000 for $0.043 each and save 89%
  • OR

    Quick Overview

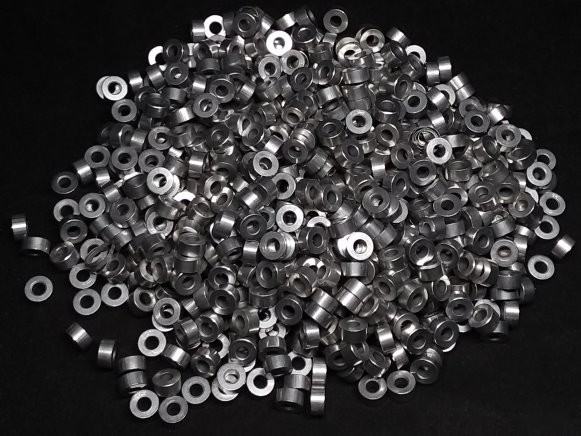

    Aluminum Spacer 1/4 OD x .115 ID x 1/8 Long

    Aluminum Spacer 1/4 OD x .115 ID x 1/8 Long

    Details

    Aluminum Spacer #AS25-4-8
    For #4 Screws

    OD = 0.25" (1/4") 6.35mm   (Standard tolerance: +/-.005", +/-.125mm)
    ID = 0.115" 2.92mm   (Standard tolerance: +/-.003", +/-.075mm)
    L = 0.125" (1/8") 3.175mm   (Standard tolerance: +/-.005", +/-.125mm)
    Wall Thickness = 0.06" 1.71mm
    Weight = 0.48 lbs/M 0.22 kg/K

    • ROHS Compliant
    • Made in the U.S.A.
      • We are the manufacturer and seller
    • Finish - Plain Aluminum
      • Spacers are tumble finished to provide a nice appearance
    • Hole is chamfered on both ends -
      • To remove burrs
      • To make it easier to guide spacer onto bolt/screw/shaft/etc.
    • Outer Diameter corners are chamfered lightly -
      • Tumble finish makes the OD chamfer into a radius
    • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
      • Corrosion resistance
      • Welding
      • Anodizing or Iriditing
        • Please see coatings to add anodizing or iriditing to your order
        • 12 colors available

    Additional Information

    SKU AS25-4-8
    Metal Alloy Aluminum 6061-T6
    Bolt Hole Size / Inner DIameter For #4 Screws
    Outer Diameter 1/4 in.----------6.35mm
    Length Decimal/Fraction/Metric 0.125 in.-----1/8----3.18mm
    Bolt Hole Size 0.115
    Outer Diameter 0.25
    Length 0.125
    Inner Metric 2.92
    Outer Metric 6.35
    Length Metric 3.18
    Price $0.39
