Aluminum Spacer 3/16 OD x .115 ID x 5/16 Long

Availability: In stock

$0.40
  • Buy 25 for $0.25 each and save 38%
  • Buy 50 for $0.18 each and save 55%
  • Buy 100 for $0.13 each and save 68%
  • Buy 250 for $0.10 each and save 75%
  • Buy 500 for $0.08 each and save 80%
  • Buy 1000 for $0.066 each and save 84%
  • Buy 2500 for $0.058 each and save 86%
  • Buy 5000 for $0.053 each and save 87%
  • Buy 10000 for $0.047 each and save 89%
  • Buy 25000 for $0.044 each and save 89%
  • OR

    Quick Overview

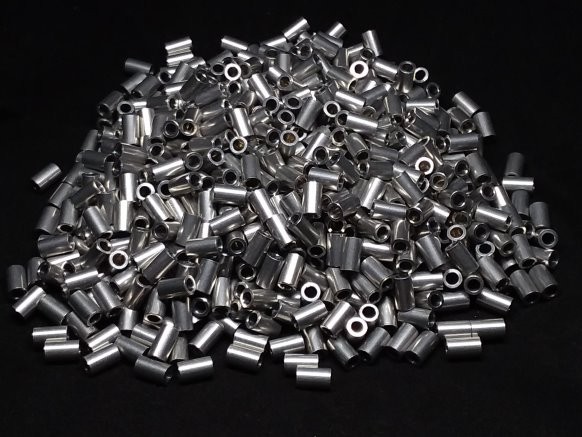

    Aluminum Spacer 3/16 OD x .115 ID x 5/16 Long

    Aluminum Spacer 3/16 OD x .115 ID x 5/16 Long

    Details

    Aluminum Spacer #AS19-4-20
    For #4 Screws

    OD = 0.187" (3/16") 4.8mm   (Standard tolerance: +/-.005", +/-.125mm)
    ID = 0.115" 2.92mm   (Standard tolerance: +/-.003", +/-.075mm)
    L = 0.313" (5/16") 7.938mm   (Standard tolerance: +/-.005", +/-.125mm)
    Wall Thickness = 0.036" .914mm
    Weight = .53 lbs/M 0.24 kg/K

    • ROHS Compliant
    • Made in the U.S.A.
      • We are the manufacturer and seller
    • Finish - Plain Aluminum
      • Spacers are tumble finished to provide a nice appearance
    • Hole is chamfered on both ends -
      • To remove burrs
      • To make it easier to guide spacer onto bolt/screw/shaft/etc.
    • Outer Diameter corners are chamfered lightly -
      • Tumble finish makes the OD chamfer into a radius
    • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
      • Corrosion resistance
      • Welding
      • Anodizing or Iriditing
        • Please see coatings to add anodizing or iriditing to your order
        • 12 colors available

    Additional Information

    SKU AS19-4-20
    Metal Alloy Aluminum 6061-T6
    Bolt Hole Size / Inner DIameter For #4 Screws
    Outer Diameter 3/16 in.--------4.76mm
    Length Decimal/Fraction/Metric 0.3125 in.---5/16---7.94mm
    Bolt Hole Size 0.115
    Outer Diameter 0.187
    Length 0.313
    Inner Metric 2.92
    Outer Metric 4.8
    Length Metric 7.94
    Price $0.40
