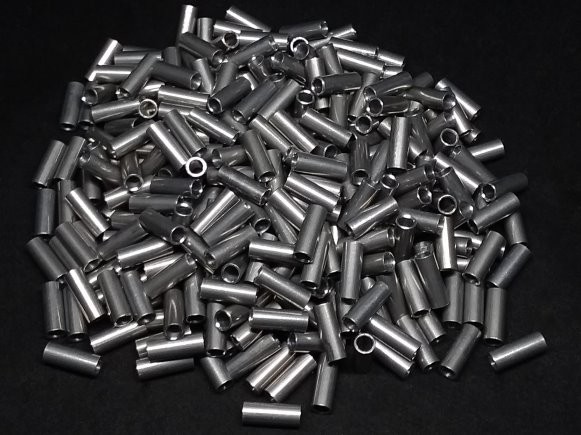

Aluminum Spacer 3/16 OD x .141 ID x 1/2 Long

Availability: In stock

$0.47
  • Buy 25 for $0.29 each and save 39%
  • Buy 50 for $0.21 each and save 56%
  • Buy 100 for $0.16 each and save 66%
  • Buy 250 for $0.12 each and save 75%
  • Buy 500 for $0.09 each and save 81%
  • Buy 1000 for $0.077 each and save 84%
  • Buy 2500 for $0.068 each and save 86%
  • Buy 5000 for $0.061 each and save 88%
  • Buy 10000 for $0.055 each and save 89%
  • Buy 25000 for $0.051 each and save 90%
  • OR

    Quick Overview

    Aluminum Spacer 3/16 OD x .141 ID x 1/2 Long

    Aluminum Spacer 3/16 OD x .141 ID x 1/2 Long

    Details

    Aluminum Spacer #AS19-6-32
    For #6 or 3mm Screws

    OD = 0.187" (3/16") 4.8mm   (Standard tolerance: +/-.005", +/-.125mm)
    ID = 0.141" 3.58mm   (Standard tolerance: +/-.003", +/-.075mm)
    L = 0.5" (1/2") 12.7mm   (Standard tolerance: +/-.005", +/-.125mm)
    Wall Thickness = 0.023" .584mm
    Weight = .584 lbs/M 0.266 kg/K

    • ROHS Compliant
    • Made in the U.S.A.
      • We are the manufacturer and seller
    • Finish - Plain Aluminum
      • Spacers are tumble finished to provide a nice appearance
    • Hole is chamfered on both ends -
      • To remove burrs
      • To make it easier to guide spacer onto bolt/screw/shaft/etc.
    • Outer Diameter corners are chamfered lightly -
      • Tumble finish makes the OD chamfer into a radius
    • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
      • Corrosion resistance
      • Welding
      • Anodizing or Iriditing
        • Please see coatings to add anodizing or iriditing to your order
        • 12 colors available

    Additional Information

    SKU AS19-6-32
    Metal Alloy Aluminum 6061-T6
    Bolt Hole Size / Inner DIameter For #6 or 3mm Screws
    Outer Diameter 3/16 in.--------4.76mm
    Length Decimal/Fraction/Metric 0.500 in.-----1/2----12.7mm
    Bolt Hole Size 0.141
    Outer Diameter 0.187
    Length 0.5
    Inner Metric 3.58
    Outer Metric 4.75
    Length Metric 12.7
    Price $0.47
