Aluminum Spacer 3/4 OD x .281 ID x 1/4 Long

Availability: In stock

Only 380 left

$2.79
  • Buy 25 for $1.74 each and save 38%
  • Buy 50 for $1.24 each and save 56%
  • Buy 100 for $0.93 each and save 67%
  • Buy 250 for $0.72 each and save 75%
  • OR

    Quick Overview

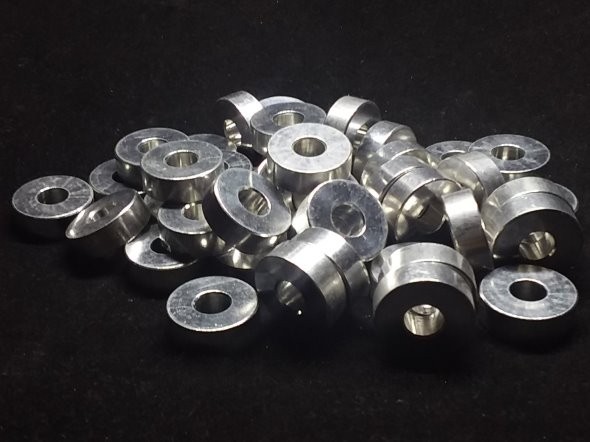

    Aluminum Spacer 3/4 OD x .281 ID x 1/4 Long

    Aluminum Spacer 3/4 OD x .281 ID x 1/4 Long

    Details

    Aluminum Spacer #AS75-15-16
    For 9/32 or 7mm Screws

    OD = 0.75" (3/4") 19.05mm   (Standard tolerance: +/-.005", +/-.125mm)
    ID = 0.281" 7.14mm   (Standard tolerance: +/-.003", +/-.075mm)
    L = 0.250" (1/4") 6.35mm   (Standard tolerance: +/-.005", +/-.125mm)
    Wall Thickness = 0.235" 5.96mm
    Weight = 9.35 lbs/M 4.25 kg/K

    • ROHS Compliant
    • Made in the U.S.A.
      • We are the manufacturer and seller
    • Finish - Plain Aluminum
      • Spacers are tumble finished to provide a nice appearance
    • Hole is chamfered on both ends -
      • To remove burrs
      • To make it easier to guide spacer onto bolt/screw/shaft/etc.
    • Outer Diameter corners are chamfered lightly -
      • Tumble finish makes the OD chamfer into a radius
    • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
      • Corrosion resistance
      • Welding
      • Anodizing or Iriditing
        • Please see coatings to add anodizing or iriditing to your order
        • 12 colors available

    Additional Information

    SKU AS75-15-16
    Metal Alloy Aluminum 6061-T6
    Bolt Hole Size / Inner DIameter 9/32 in. (7.14mm)
    Outer Diameter 3/4 in.---------19.05mm
    Length Decimal/Fraction/Metric 0.250 in.-----1/4----6.35mm
    Bolt Hole Size 0.281
    Outer Diameter 0.75
    Length 0.250
    Inner Metric 7.14
    Outer Metric 19.05
    Length Metric 6.35
    Price $2.79
