Browse our Spacer Selections



Click Spacer Descriptions for Pricing

Aluminum Spacer 5/16 OD x .192 ID x 11/64 Long

Availability: In stock

$0.62
  • Buy 25 for $0.39 each and save 38%
  • Buy 50 for $0.27 each and save 57%
  • Buy 100 for $0.21 each and save 67%
  • Buy 250 for $0.16 each and save 75%
  • Buy 500 for $0.12 each and save 81%
  • Buy 1000 for $0.101 each and save 84%
  • Buy 2500 for $0.079 each and save 88%
  • Buy 5000 for $0.063 each and save 90%
  • Buy 10000 for $0.056 each and save 91%
  • Buy 25000 for $0.052 each and save 92%
OR

Quick Overview

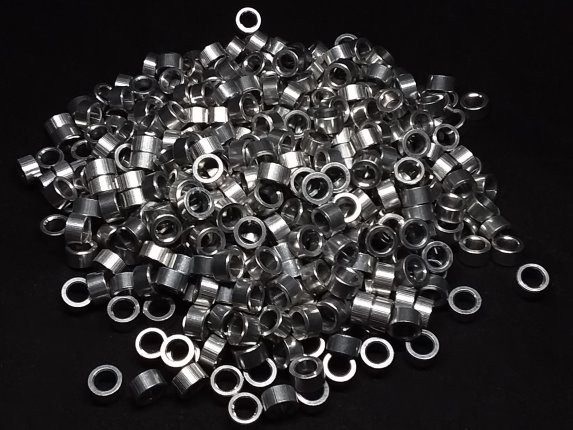

Aluminum Spacer 5/16 OD x .192 ID x 11/64 Long

Aluminum Spacer 5/16 OD x .192 ID x 11/64 Long

Details

Aluminum Spacer #AS31-10-11
For #10 Screws

OD = 0.313" (5/16") 7.94mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.192" 4.92mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.172" (11/64") 4.369mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.06" 1.53mm
Weight = 0.8 lbs/M 0.37 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Plain Aluminum
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS31-10-11
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For #10 Screws
Outer Diameter 5/16 in.--------7.94mm
Length Decimal/Fraction/Metric 0.172 in.---11/64---4.37mm
Bolt Hole Size 0.192
Outer Diameter 0.313
Length 0.172
Inner Metric 4.92
Outer Metric 7.94
Length Metric 4.37
Price $0.62
