Aluminum Spacer 5/8 OD x .257 ID x 5/32 Long

Availability: In stock

$1.72
  • Buy 25 for $1.08 each and save 38%
  • Buy 50 for $0.77 each and save 56%
  • Buy 100 for $0.57 each and save 67%
  • Buy 250 for $0.44 each and save 75%
  • Buy 500 for $0.34 each and save 81%
  • Buy 1000 for $0.283 each and save 84%
  • Buy 2500 for $0.222 each and save 88%
  • Buy 5000 for $0.178 each and save 90%
  • Buy 10000 for $0.159 each and save 91%
  • Buy 25000 for $0.148 each and save 92%
OR

Quick Overview

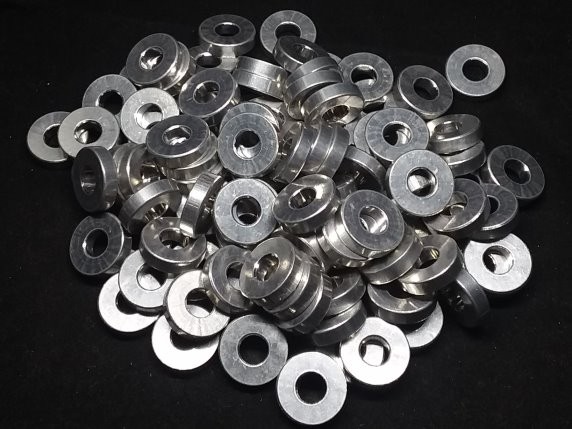

Aluminum Spacer 5/8 OD x .257 ID x 5/32 Long

Aluminum Spacer 5/8 OD x .257 ID x 5/32 Long

Details

Aluminum Spacer #AS62-14-10
For 1/4 or 6mm Screws

OD = 0.625" (5/8") 15.88mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.257" 6.53mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.156" (5/32") 3.962mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.18" 4.67mm
Weight = 3.9 lbs/M 1.77 kg/K

  • ROHS Compliant
  • Made in the U.S.A.
    • We are the manufacturer and seller
  • Finish - Plain Aluminum
    • Spacers are tumble finished to provide a nice appearance
  • Hole is chamfered on both ends -
    • To remove burrs
    • To make it easier to guide spacer onto bolt/screw/shaft/etc.
  • Outer Diameter corners are chamfered lightly -
    • Tumble finish makes the OD chamfer into a radius
  • Aluminum Alloy is 6061-T6/T651/T6511.  This alloy is best for:
    • Corrosion resistance
    • Welding
    • Anodizing or Iriditing
      • Please see coatings to add anodizing or iriditing to your order
      • 12 colors available

Additional Information

SKU AS62-14-10
Metal Alloy Aluminum 6061-T6
Bolt Hole Size / Inner DIameter For 1/4" or 6mm Bolts
Outer Diameter 5/8 in.---------15.9mm
Length Decimal/Fraction/Metric 0.156 in.----5/32---3.96mm
Bolt Hole Size 0.257
Outer Diameter 0.625
Length 0.156
Inner Metric 6.53
Outer Metric 15.88
Length Metric 3.96
Price $1.72
