Details

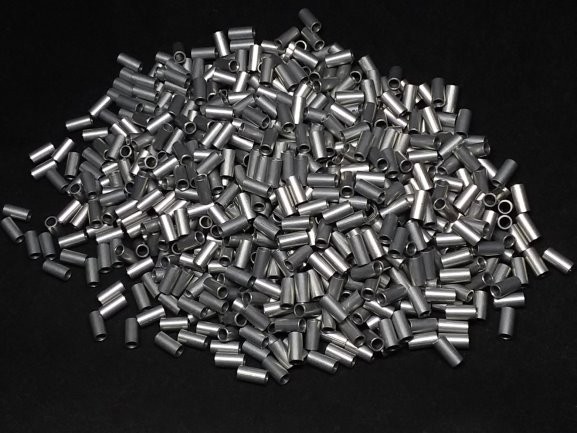

Aluminum Spacer #AS13-2-.225
For #2 Screws
OD = 0.125" (1/8") 3.18mm (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.0905" 2.3mm (Standard tolerance: +/-.003", +/-.075mm)
L = 0.225" 5.72mm (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.018" .457mm
Weight = 0.15 lbs/M 0.067 kg/K
- ROHS Compliant
- Made in the U.S.A.
- We are the manufacturer and seller
- Finish - Plain Aluminum
- Spacers are tumble finished to provide a nice appearance
- Hole is chamfered on both ends -
- To remove burrs
- To make it easier to guide spacer onto bolt/screw/shaft/etc.
- Outer Diameter corners are chamfered lightly -
- Tumble finish makes the OD chamfer into a radius
- Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:
- Corrosion resistance
- Welding
- Anodizing or Iriditing
- Please see coatings to add anodizing or iriditing to your order
- 12 colors available
Additional Information
SKU | AS13-2-.225 |
---|---|
Metal Alloy | Aluminum 6061-T6 |
Bolt Hole Size / Inner DIameter | For #2 or 2mm Screws |
Outer Diameter | 1/8 in.----------3.18mm |
Length Decimal/Fraction/Metric | 0.225 in.-------------5.72mm |
Bolt Hole Size | 0.0905 |
Outer Diameter | 0.125 |
Length | 0.225 |
Inner Metric | 2.299 |
Outer Metric | 3.175 |
Length Metric | 5.72 |
Price | $0.56 |
