Aluminum Spacer 9/16 OD x 10.2mm ID x 7/8 Long

Email to a Friend

Availability: In stock

Only 467 left

$1.88

Buy 25 for $1.34 each and save 29%
Buy 50 for $0.99 each and save 48%
Buy 100 for $0.76 each and save 60%
Buy 250 for $0.61 each and save 68%

Qty:

-OR-

Quick Overview

Aluminum Spacer 9/16 OD x 10.2mm ID x 7/8 Long

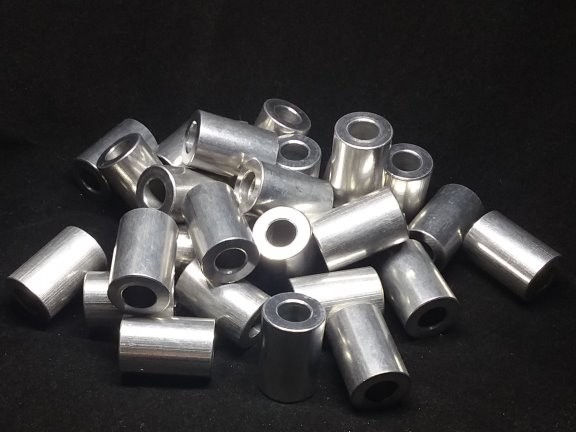

Aluminum Spacer 5/8 OD x 5/16or 8mm ID x 15/16 Long

Double click on above image to view full picture

More Views

Details

Aluminum Spacer #AS56-10M-56
For 10mm Screws

OD = 0.5625" (9/16") 14.29mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.402" 10.2mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 0.875" (7/8") 22.23mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.08" 2.04mm
Weight = 19.44 lbs/M 8.8 kg/K

ROHS Compliant
Made in the U.S.A.

We are the manufacturer and seller
This is a limited availability item. Once we run out we will not be restocking it.

Finish - Plain Aluminum

Spacers are tumble finished to provide a nice appearance

Hole is chamfered on both ends -

To remove burrs
To make it easier to guide spacer onto bolt/screw/shaft/etc.

Outer Diameter corners are chamfered lightly -

Tumble finish makes the OD chamfer into a radius

Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:

Corrosion resistance
Welding
Anodizing or Iriditing

Please see coatings to add anodizing or iriditing to your order
12 colors available

Additional Information

SKU	AS56-10M-56
Metal Alloy	Aluminum 6061-T6
Bolt Hole Size / Inner DIameter	For 10mm or 3/8" Bolts
Outer Diameter	No
Length Decimal/Fraction/Metric	0.906 in.---29/32---23.02mm
Bolt Hole Size	10mm
Outer Diameter	0.5625
Length	0.875
Inner Metric	10.2
Outer Metric	14.29
Length Metric	22.22
Price	$1.88
