Aluminum Spacer 3/4 OD x .257 ID x 1-1/4 Long

Email to a Friend

Availability: In stock

$3.38

Buy 25 for $2.41 each and save 29%
Buy 50 for $1.79 each and save 48%
Buy 100 for $1.37 each and save 60%
Buy 250 for $1.10 each and save 68%
Buy 500 for $0.88 each and save 74%
Buy 1000 for $0.73 each and save 79%
Buy 2500 for $0.61 each and save 82%
Buy 5000 for $0.53 each and save 85%
Buy 10000 for $0.48 each and save 86%
Buy 25000 for $0.44 each and save 87%

Qty:

-OR-

Quick Overview

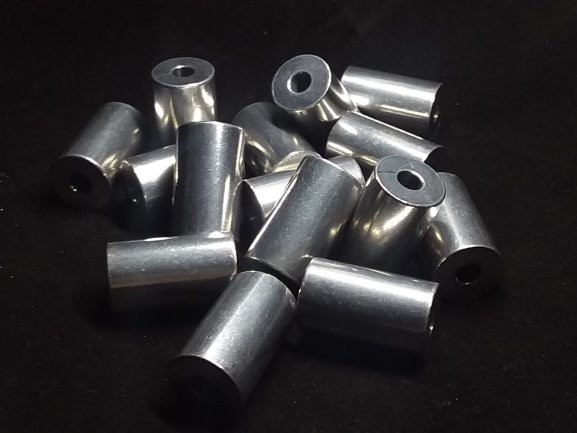

Aluminum Spacer 3/4 OD x .257 ID x 1-1/4 Long

Aluminum Spacer 3/4 OD x .257 ID x 1-1/4 Long

Double click on above image to view full picture

More Views

Details

Aluminum Spacer #AS75-14-80
For 1/4 or 6mm Screws

OD = 0.75" (3/4") 19.05mm   (Standard tolerance: +/-.005", +/-.125mm)
ID = 0.257" 6.53mm   (Standard tolerance: +/-.003", +/-.075mm)
L = 1.25" (1-1/4") 31.75mm   (Standard tolerance: +/-.005", +/-.125mm)
Wall Thickness = 0.24" 6.26mm
Weight = 47.76 lbs/M 21.68 kg/K
ROHS Compliant
Made in the U.S.A.
We are the manufacturer and seller
Finish - Plain Aluminum
Spacers are tumble finished to provide a nice appearance
Hole is chamfered on both ends -
To remove burrs
To make it easier to guide spacer onto bolt/screw/shaft/etc.
Outer Diameter corners are chamfered lightly -
Tumble finish makes the OD chamfer into a radius
Aluminum Alloy is 6061-T6/T651/T6511. This alloy is best for:
Corrosion resistance
Welding
Anodizing or Iriditing
Please see coatings to add anodizing or iriditing to your order
12 colors available

Additional Information

SKU	AS75-14-80
Metal Alloy	Aluminum 6061-T6
Bolt Hole Size / Inner DIameter	For 1/4" or 6mm Bolts
Outer Diameter	3/4 in.---------19.05mm
Length Decimal/Fraction/Metric	1.250 in.---1-1/4---31.75mm
Bolt Hole Size	0.257
Outer Diameter	0.75
Length	1.25
Inner Metric	6.53
Outer Metric	19.05
Length Metric	31.75
Price	$3.38
